    Home/ Collections/ Evolution 10 in., Segmented Edge, 7/8 in. Arbor, Multi-Purpose, Metal Cutting Diamond blade

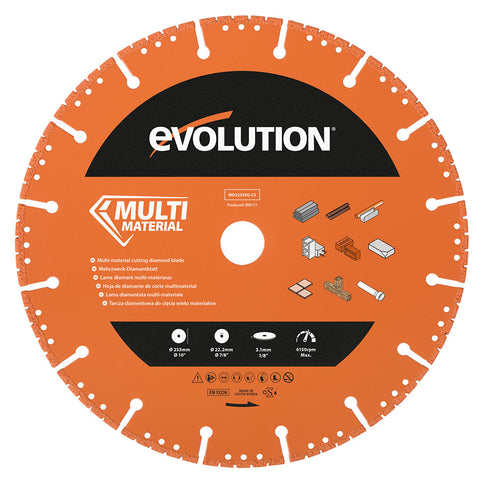

    Evolution 10 in., Segmented Edge, 7/8 in. Arbor, Multi-Purpose, Metal Cutting Diamond blade
    Evolution 10 in., Segmented Edge, 7/8 in. Arbor, Multi-Purpose, Metal Cutting Diamond blade
    Home/ Collections/ Evolution 10 in., Segmented Edge, 7/8 in. Arbor, Multi-Purpose, Metal Cutting Diamond blade

    Evolution 10 in., Segmented Edge, 7/8 in. Arbor, Multi-Purpose, Metal Cutting Diamond blade

    $102.99 $109.99


    This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

    Multi-material cutting diamond edge blade offers versatile cutting and superior blade life.

    • Compatible with the R255DCT Concrete Cutting Saw
    • Multi-material Cutting: One saw & One blade will cut most common building materials including ferrous & non-ferrous metals, reinforced concrete, bricks, tiles, plastics & more saving you time and money.
    • 30x Longer Life: Up to 30x longer blade life than abrasive discs when cutting metal. Diamond cutting edge is incredibly tough and can make over 1,000 cuts through steel.
    • Constant Diameter: Steel blade body with diamond cutting edge maintains its full diameter so you have maximum cutting capacity for the lifetime of the blade.
    • Cleaner & Safer: The steel body won’t shatter, unlike abrasives, which can cause serious injury. Less dust, less sparks & less odor vs abrasive discs, make this a safer cutting solution.

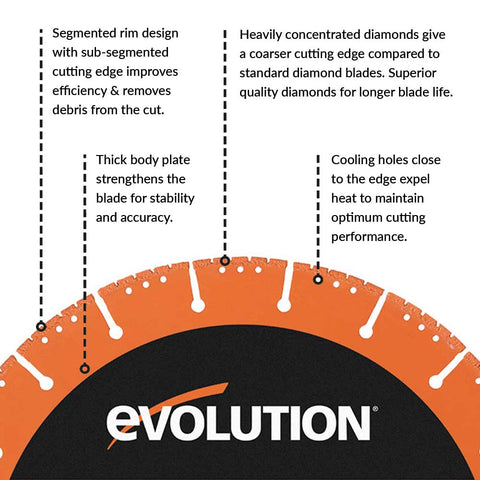

    • Cooling holes close to the edge expel heat to maintain optimum cutting performance.
    • Heavily concentrated diamonds give a coarser cutting edge compared to standard diamond blades.
    • Superior quality diamonds for longer blade life.
    • Segmented rim design with sub-segmented cutting edge improves efficiency & removes debris from the cut.
    • Thick body plate strengthens the blade for stability and accuracy.

    Specifications

    Dia. Ø: 10 in.
    Max. Speed: 6150 RPM
    Bore / Arbor Ø: 7/8 in.
    Rim: Segmented
    Base Thickness: 0.071 in.
    Segment / Tooth Thickness: 0.122 in.
    Segment / Tooth Height: 0.118 in.
    Segment / Tooth Quantity: 16
    Sub-Segment / Tooth Quantity: 80
    Share
    Share on Facebook Twitter Pinterest
    ×

    Shipping

    Standard shipping times are 2-5 days. Expedited options available at checkout

    Delivery

    Most orders ship same day and arrive within 2-5 days.

    Returns

    Free Returns of items within 30 days. ESAB Welders and Plasma Cutters are backed by a 100 Day satisfaction guarantee
